SEARCH - Cummins Flywheel Housing

USED USED NTO OEM CUMMINS QSX15 (3869) CAST IRON FLYWHEEL HOUSING 3102463 FLYWHEEL HOUSING SAE SIZE OR TYPE: 1 FLYWHEEL HOUSING MATERIAL: CAST IRON ENGINE MOUNT TYPE: LOW VERTICAL PAD TRANSMISSION MOUNTING HOLE NOMENCLATURE: SAE STARTING MOTOR MOUNTING SCREWS: SAE STARTER CENTER DISTANCE: 275.6 MM (10.85 IN) CLUTCH TYPE PROVISION: DRY SENSOR MOUNTING HOLE NOMENCLATURE: QUAD 1, 5/8 - 18 AND QUAD 4, 3/4 - 16 REAR GEAR DRIVE: YES TRANSMISSION MTG FACE TO RFOB: 309.3 MM (12.2 IN) STARTER LOCATION: 2ND AND 3RD QUADRANT SENSOR MOUNTING HOLE COUNT: TWO UNIQUE CHARACTERISTICS: HOUSING DESIGNED TO PROVIDE REAR ENGINE POWER TAKE OFF WHEN USED IN COMBINATION WITH DR OPTIONS. LIMITED TO 500 LBS. RADIAL LOAD

USED USED GTO OEM CUMMINS QSX15 (5428) FLYWHEEL HOUSING / ENGINE SUPPORT 5537023 FLYWHEEL HOUSING FLYWHEEL HOUSING SAE SIZE OR TYPE: 1 FLYWHEEL HOUSING MATERIAL: DUCTILE IRON ENGINE MOUNT TYPE: FORWARD-REACHING ANGLED ARMS ENGINE MOUNT BOLT SIZE: 22 MM ENGINE MOUNT LOCATION FROM RFOB: 143.7 MM AXIAL 24.3 MM VERT. 424.0 MM LATERAL STARTER MOTOR MOUNTING: SAE TYPE 1 STARTER BORE DIAMETER: 92.15 MM (3.63 IN) STARTING MOTOR MOUNTING SCREWS: CUSTOMER SUPPLIED (METRIC) STARTER CENTER DISTANCE: 265.1 MM (10.44 IN) CLUTCH TYPE PROVISION: NONE SENSOR MOUNTING HOLE NOMENCLATURE: N/A REAR GEAR DRIVE: NO TRANSMISSION MTG FACE TO RFOB: N/A STARTER LOCATION: 3RD QUADRANT SENSOR MOUNTING HOLE COUNT: NONE CONTAINS TWO M16 TAPPED HOLES AT THE TOP AND TWO M10 TAPPED HOLES AT THE BOTTOM FOR OEM USE CONTAINS TWO HOLES FOR DOWEL PINS FOR OEM USE

USED USED GTO OEM CUMMINS QSX15 (3961) FLYWHEEL HOUSING / ENGINE SUPPORT 3691004 FLYWHEEL HOUSING SAE SIZE OR TYPE: 1 FLYWHEEL HOUSING MATERIAL: DUCTILE IRON ENGINE MOUNT TYPE: FORWARD-REACHING ANGLED ARMS ENGINE MOUNT BOLT SIZE: 22 MM ENGINE MOUNT LOCATION FROM RFOB: 143.7 MM AXIAL 24.3 MM VERT. 424.0 MM LATERAL STARTER MOTOR MOUNTING: SAE TYPE 1 STARTER BORE DIAMETER: 92.15 MM (3.63 IN) STARTING MOTOR MOUNTING SCREWS: CUSTOMER SUPPLIED (METRIC) STARTER CENTER DISTANCE: 265.1 MM (10.44 IN) CLUTCH TYPE PROVISION: NONE SENSOR MOUNTING HOLE NOMENCLATURE: N/A REAR GEAR DRIVE: NO TRANSMISSION MTG FACE TO RFOB: N/A STARTER LOCATION: 3RD QUADRANT SENSOR MOUNTING HOLE COUNT: NONE CONTAINS M16 TAPPED HOLES FOR OEM USE

USED USED GTO OEM CUMMINS QSX15 (8760) CAST IRON FLYWHEEL HOUSING 4026677 HAS SOME RUST ALL AROUND THE OUTSIDE

NEW FLYWHEEL HOUSING CUMMINS 3882591 ISM M11 L10 STARTER OPENING 3-5/8 INCHES SAE #1

USED USED GTO OEM CUMMINS QSX15 (8760) ALUMINUM FLYWHEEL HOUSING 3102196 / 3103584 Flywheel Housing SAE Size: No. 1 Flywheel Housing Material: Aluminum Engine Mount Type: 10 Deg. Pads. Transmission Mounting Hole Nomenclature: English (in) Starter Motor Mounting Screws: English (in) Starter Center Distance: 10.437 Clutch Type Provision: Dry Tachometer Sensor Mounting Hole Count: One

USED USED GTO OEM CUMMINS QSX15 (2825) CAST IRON FLYWHEEL HOUSING 4026662

USED USED GTO OEM CUMMINS ISM (2350) FLYWHEEL HOUSING 4920523 Flywheel Housing Flywheel Hsg SAE Size or Type: 1 Flywheel Housing Material: Aluminum Engine Mount Type: High Angular Pads Starting Motor Mounting Screws: SAE Starter Center Distance: 243.84mm (9.60") Starter Bore Dia: 92.06mm (9.60") With Sleeve Clutch Type Provision: Dry Sensor Mtg Hole Nomenclature: Quad 2, 3/4 - 16 Quad 3, 3/4 - 16 Rear Gear Drive: No Starter Loc: 3rd Quadrant Quadrant Sensor Mounting Hole Count: 1 One Engine Position: Vertical Standard 10 Degree Turbo Down

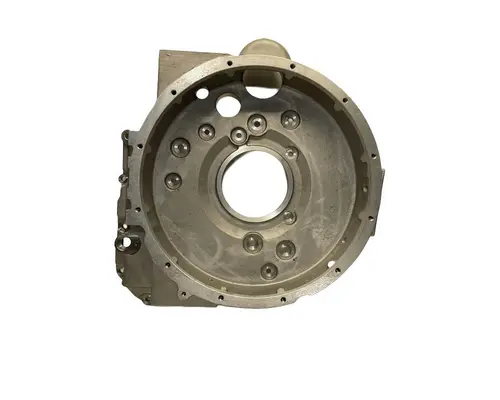

USED CUMMINS ISB-CR-6.7 (REAR GEAR) FLYWHEEL HOUSING P/N: 3999869

USED USED GTO CUMMINS X12 FLYWHEEL HOUSING 5558741 FLYWHEEL HOUSING SAE SIZE OR TYPE: 1 FLYWHEEL HOUSING MATERIAL: ALUMINUM ENGINE MOUNT TYPE: REAR ENGINE MOUNTS TRANSMISSION MOUNTING HOLE NOMENCLATURE: SAE STARTING MOTOR MOUNTING SAE OR TYPE: 3 STARTING MOTOR MOUNTING HOLE NOMENCLATURE: SAE STARTER CENTER DISTANCE: 265.1 MM STARTER BORE DIAMETER: 92.15 MM STARTER ANGLE FROM HORIZONTAL: -5 DEG STARTER LOCATION: 2ND QUADRANT CLUTCH TYPE PROVISION: DRY REAR ENGINE POWER TAKE OFF: NO SENSOR MOUNTING HOLE NOMENCLATURE: 2ND QUADRANT, 3/4 - 16 REAR FACE OF BLOCK TO TRANSMISSION MOUNTING FACE: 150.0 MM ENGINE INSTALLATION: 2 DEG ROLL TOWARDS EXHAUST SIDE OFFSET ENGINE MOUNT COMPATIBLE: YES BENDING MOMENT LIMITS AS FOLLOWS: BENDING MOMENT AT RFOB: 1000 FT-LBS (GENERAL) / 500 FT-LBS (SEVERE) BENDING MOMENT AT FH PAD DUE TO AXIAL OFFSET REAR MOUNT: 361 FT-LBS (GENERAL) 180.5 FT-LBS (SEVERE) BENDING MOMENT AT FH PAD DUE TO LATERAL OFFSET REAR MOUNT: 482 FT-LBS (GENERAL) 241 FT-LBS (SEVERE)

Good, used flywheel housing from a Cummins N14 engine. The flywheel housing has been inspected and is in good working condition. The mounting bracket attached to the flywheel housing has minor damage, refer to photos. There is no visible damage to the flywheel housing. The bolt holes are clear and in good condition. All bolt holes are clean and clear from obstructions. The casting number is 902341. The serial number is not available. Please see the photos attached. If you have any further questions, please feel free to call or email us. We ship anywhere! Thank you!

USED USED GTO OEM CUMMINS QSX15 (8761) CAST IRON FLYWHEEL HOUSING INDUSTRIAL USE, DUAL STARTER, SAE 1 4026662

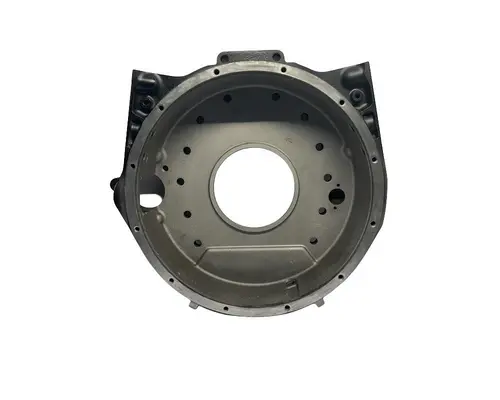

Good used Flywheel housing from a Cummins ISX engine. The flywheel housing has been visually inspected and is in good condition. The flywheel housing has chipped paint and corrosion. The flywheel housing has some damages, please refer to the photos provided. The flywheel housing has no signs of dents or cracks. All bolt holes are clean and clear from obstructions. The casting number is 3103591. The serial number is 79921316. Please see the photos attached. If you have any further questions, please feel free to call or email us. We ship anywhere! Thank you!

USED Used ISC Flywheel Housing

NEW BLEM- SCRATCH & DENT

NEW AFTERMARKET New Aftermarket M11 Flywheel Housing

USED USED NTO OEM CUMMINS X15 (4342) FLYWHEEL HOUSING 3695287

NEW ALUM FLYWHEEL HOUSING CUMMINS NT855 SMALL CAM/BIG CAM NT88 N14 FORD & STERLING TRUCKS HOUSING SIZE – SAE #2 FLYWHEEL SIZE – SAE #2 17? RING GEAR STARTER LOCATION – DRIVER SIDE 9 O’CLOCK 3/4? MOTOR MOUNT HOLES **DRILLED FOR ELECTRONIC TAP** **DRILLED FOR BOTH-“STRAIGHT OR 12 DEGREE TILT”-MOUNT APPLICATIONS

USED Used N14 Celect Plus Flywheel Housing

Good, used flywheel housing from a Cummins ISX engine. The flywheel housing has been inspected and appears to be in good working condition. There is no visible damage to the flywheel housing. The bolt holes are clear and in good condition. The casting number is 3102195. The engine serial number is not available. Please see the photos attached. If you have any further questions, please feel free to call or email us. We ship anywhere! Thank you!

USED Used X15 Flywheel Housing

NEW AFTERMARKET New Aftermarket M11 Flywheel Housing

NEW AFTERMARKET New Aftermarket M11 Flywheel Housing

USED Industrial, SAE1, Cast Iron, 12 bolt, dual starter positions, dry flywheel housing.

NEW 3680063 ALUMINUM FLYWHEEL HOUSING - CUMMINS ISX - SIZE: SAE #1 STARTER LOCATION: DRIVER SIDE 9 O'CLOCK FLYWHEEL SIZE: SAE #1, 20" RING GEAR CROSS REFERENCE - 4026795, 3412303, 3102196, 3103584, 3680063
