SEARCH - Cat c15 Flywheel

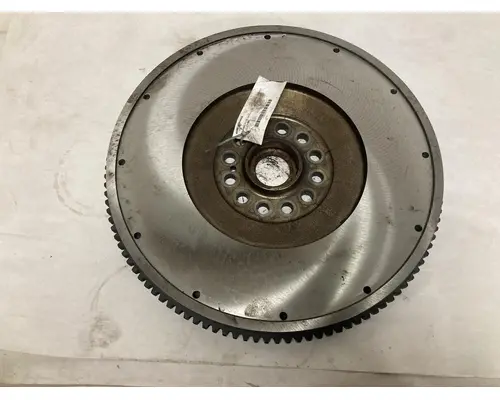

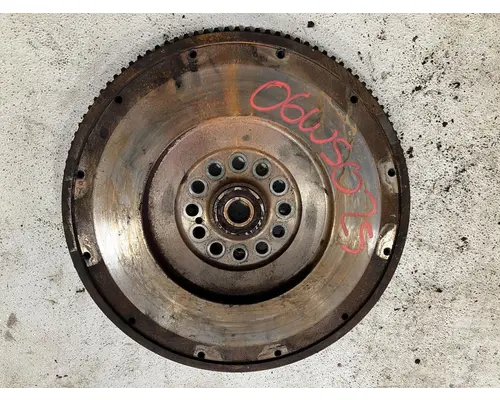

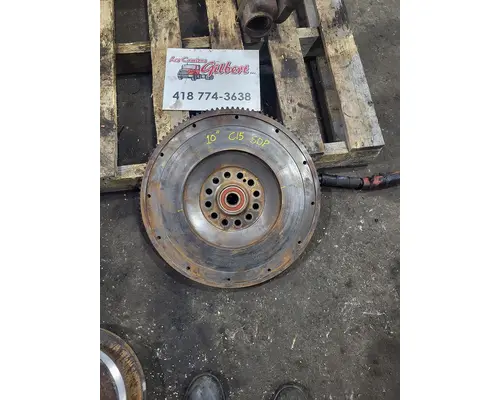

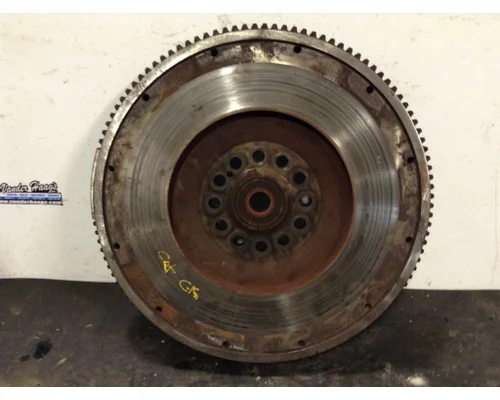

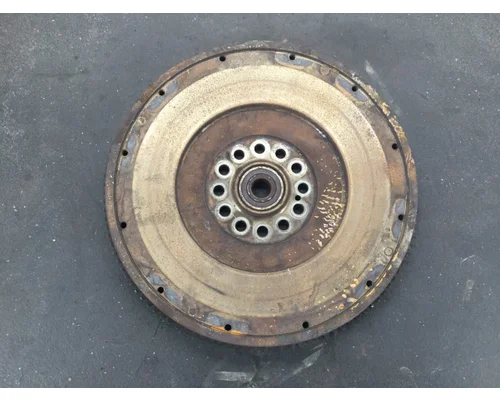

Good, used flywheel from a Caterpillar C15 Twin Turbo engine. The flywheel has been inspected and appears to be in good working condition. There is no visible damage to the flywheel. There is minor rust seen on the flywheel. The casting number is not visible. The engine serial number is MXS61830. Please see the photos attached. If you have any further questions, please feel free to call or email us. We ship anywhere! Thank you!

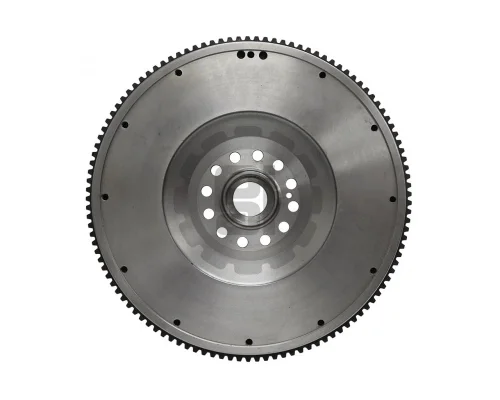

NEW AFTERMARKET New Aftermarket C15 Flywheel

NEW AFTERMARKET New Aftermarket C15 Flywheel

New New Aftermarket Caterpillar Flywheel Application: Caterpillar 3406E (Late) Caterpillar C15 Cross Reference Numbers: 2441636 Notes: Design: Flat with 10" Opening Mounting: 12 Bolt Holes Size: SAE #1 Clutch: 15" Ring Gear: AK-2569651, 20" O.D. - 113 Teeth Pilot Bearing: 306 Ring gear included MUST USE SHORTER MOUNTING BOLTS (Part #- AK-5B0841) Covered for 1 year ? up to 100,000 miles / 160,984 km, or 1,200 hours, whichever occurs first, providing the part has been installed within 18 months of the purchase date from AKMI. **After 18 months, parts will no longer be covered by this warranty. .

USED SMOOTH, BUT SHOULD BE TURNED

USED CAST# 4N251 474C0284 (PICTURED)

USED

USED

USED TURNED, USED ON 3406E AND EARLY C15, "NOT LIGHT WEIGHT",RING GEAR# 4N2514, 8.5" opening.

USED

USED CAT C15/LATE 3406 FLYWHEEL, 5/8" WIDE RING GEAR, HAS BEEN TURNED Design: Flat with 10" Opening Mounting: 12 Bolt Holes Size: SAE #1 Clutch: 15" Ring Gear: 20" O.D. – 113 Teeth Pilot Bearing: 306

USED CAT C15/LATE 3406 FLYWHEEL, 1" WIDE RING GEAR, HAS BEEN TURNED Design: Flat with 10" Opening Mounting: 12 Bolt Holes Size: SAE #1 Clutch: 15" Ring Gear: 20" O.D. – 113 Teeth Pilot Bearing: 306

USED NEEDS TURNED

USED

USED CAT C15 FLYWHEEL, 12 BOLT PATTERN, 9.75" BORE, NEEDS TURNED

USED

Part CAT C-15 Flywheel, P/N: 4N2514. $399.00 For Information on this or any other engines. Please Call 1-888-310-3539.

Part CAT C-15 - 6NZ Flywheel, Parts # 4N251404828768 * REMANUFACTURED* $399.00

Part 2006 CAT C-15 NXS Flywheel. Good Used Parts. $399.00 For Information on this or any other engines. Please Call 1-888-310-3539.

NEW AFTERMARKET New Aftermarket C15 Flywheel

NEW Flywheel,(C15)

NEW New Aftermarket Flywheel P/N: 2569653 Cross Reference: 256-9653, 10R-2356 Specs: Ring Gear Teeth: 113 Crank Mounting Bolt Holes: 12 Clutch Mounting Bolt Holes: 12 Flywheel Bore: 10.12in

Part CAT C-15 MXS Flywheel, P/N: 256-9651. $399.00

GOOD USED FLYWHEEL WILL BE TURNED

USED CAT C15 FLYWHEEL, 12 BOLT PATTERN, 9.75" BORE, NEEDS TURNED
