SEARCH - Cummins x15epa17 Oil Pan

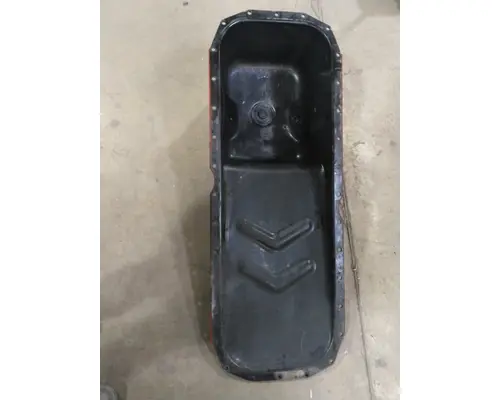

USED USED GTO OEM CUMMINS X15 (5535) OIL PAN 5647538 SUMP LOCATION: FRONT MATERIAL: STEEL CONSTRUCTION: STAMPED SUMP CAPACITY: 11 GAL HIGH, 9 GAL LOW ANGULARITY LIMITS (GRAVITATIONAL HORIZONTAL): 38 DEGREES FRONT DOWN 22 DEGREES REAR DOWN 30 DEGREES FUEL PUMP DOWN 30 DEGREES EXHAUST DOWN UNIQUE CHARACTERISTICS: STUDS ON OIL PAN FLANGE LOCATED AT #2, #5, #28 AND #32 MOUNTING HOLES ON EXHAUST SIDE AND AT #11, #12, #15, #16, #18, #19, #22 AND #23 MOUNTING HOLES ON FUEL PUMP SIDE OF ENGINE REFER TO THE NEW ENGINE BUILD STANDARD FOR D10 HOLE LOCATIONS IN OIL PAN. AEB 46.05 MAY ALSO BE CONSULTED. MAXIMUM WEIGHT LIMIT ON ANY SINGLE STUD IS SEVEN (7) POUNDS. POWER ANGLE: NOT TO EXCEED 5 DEG.

USED USED GTO OEM CUMMINS X15 (4342) OIL PAN 4386821 OIL PAN SUMP LOCATION: FRONT MATERIAL: STEEL CONSTRUCTION: STAMPED SUMP CAPACITY: 11 GAL HIGH, 9 GAL LOW ANGULARITY LIMITS (GRAVITATIONAL HORIZONTAL): 38 DEGREES FRONT DOWN 22 DEGREES REAR DOWN 30 DEGREES FUEL PUMP DOWN 30 DEGREES EXHAUST DOWN UNIQUE CHARACTERISTICS: STUDS ON OIL PAN FLANGE LOCATED AT #2, #5, #28 AND #32 MOUNTING HOLES ON EXHAUST SIDE AND AT #11, #12, #15, #16, #18, #19, #22 AND #23 MOUNTING HOLES ON FUEL PUMP SIDE OF ENGINE REFER TO THE NEW ENGINE BUILD STANDARD FOR D10 HOLE LOCATIONS IN OIL PAN. AEB 46.05 MAY ALSO BE CONSULTED. MAXIMUM WEIGHT LIMIT ON ANY SINGLE STUD IS SEVEN (7) POUNDS. POWER ANGLE: NOT TO EXCEED 5 DEG. AEB 20.17 MIGHT BE CONSULTED FOR MORE DETAILS REGARDING MAX

NEW CUMMINS X15 FRONT SUMP OIL PAN

NEW CUMMINS X15 FRONT SUMP OIL PAN

NEW CUMMINS X15 FRONT SUMP OIL PAN
