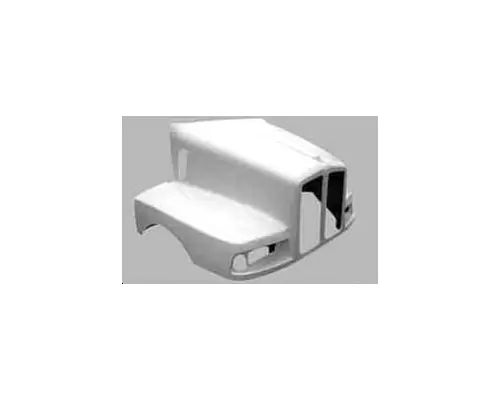

JP Part #: K05

1 OEM Make: Kenworth 94 T-600-B

3 OEM #: K146-1241, K146-1242, K146-1165,

4 OEM #: K146-1146, K146-1098

5 Info: Fits Curved Windhsield - 1990 to 1994

6 Info: Hood length 57 1/4"

7 Info: Has split grill

8 Info: Shipping Wt Crated = 305 lbs

9 Info: ?After market front bra may need to be altered to fit this hood

10 Info: ?This model hood was used in some 1995 applications, best

11 Info: way to identify is back or rear turn signal on fender

12 Info: Coremat added to suppress starburst

13 Info: Comes with cable catches, insulation stays & grill mount screws

14 Info: Cofab in high stress areas

15 Info: Reinforced hinge assemblies are predrilled

16 Info: Headlights and breather are already cut out

17 Info: Rear fenders reinforced with Kevlar

18 Info: Double wall construction in grill area

24 Info/# of pics: 1

JP Part #: K01

1 OEM Make: Kenworth T-600 Open Grill

3 OEM #: K146-1010

5 Info: Fits 1984 to 1989, split flat windshield cab

6 Info: Hood length approx 62 1/2"

7 Info: Was first called the Anteater

8 Info: Comes with an open grill

9 Info: Shipping Wt Crated = 290 lbs

10 Info: ?Will not fit Aero Cab

11 Info: ?Scribed air intake on sides to fit most applications

12 Info: check old hood for placement

14 Info: Coremat added to suppress starburst. Cofab in high stress areas

15 Info: Reinforced predrilled hinge assembly

16 Info: Kevlar reinforced wear pad on rear of fender

17 Info: Insultation mounting brace included

18 Info: Scribed air intake on sides to fit most applications

19 Info: Headlight area cut out

20 Info: Comes with cable catches

24 Info/# of pics: 1

JP Part #: P04

1 OEM Make: Peterbuilt 379 Extended

3 OEM #: 13-03553

5 Info: Fits Peterbuilt 379 Extended 127 BBC

6 Info: Shipping Wt Crated = 400 lbs

7 Info: ?Fits extended 127 BBC only

8 Info: ? Center section and fenders available separately

9 Info: (parts # JP-P90 and JP-P30L/JP-P30R)

10 Info: ?Center section is a one-piece design with bodyline and no rivets

11 Info: ?Accepts OE grill

13 Info: Grill area is one-piece and fully enclosed for support

14 Info: Reinforced mounting area

15 Info: E-coated hardware

16 Info: Bolt-on fenders with stainless steel bolts and Nylock nuts

17 Info: Specially designed hinge area with additional reinforcement

19 Info: FIBERGLASS REPLACEMENT FOR ALUMINUM HOOD AND FENDERS

24 Info/# of pics: 1

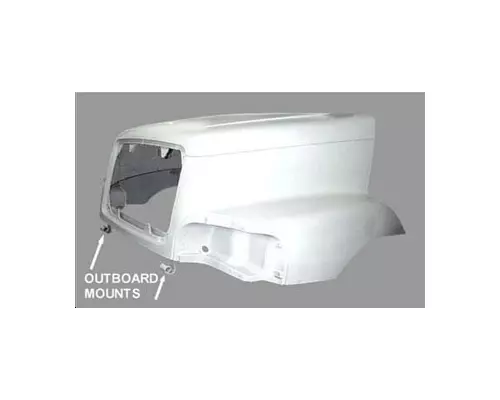

JP Part #: FL12

1 OEM Make: FL Century C120 Old - Outboard Hinge

3 OEM #: A17-12701-002

5 Info: Fits FL Century C120 BBC old style outboard hinge 97 to 2002

6 Info: Hood length 56"

8 Info: Shipping WT. Crated - 280lbs

10 Info: 1 piece design replaces 3-piece OE hood

11 Info: Fits 120 BBC, not 112 BBC

12 Info: Check hinge mounts for correct hood

13 Info: 28 inches between hinge mounts

14 Info: Will only accept old style grill OE # A17-12733-000

15 Info: Inner splash shields attach to truck not the hood

16 Info: Hood glide assembly bolts to hood

17 Info: Lower grill opening complete fiberglass panel

18 Info: Will only accept old style headlights and bezels

20 Info: Elastomeric urethane adhesive used in assembly of innerstructure

21 Info: Hinge cross bar included ready for mounting

22 Info: Cofab reinforcement used in high stress areas

24 Info/# of pics: 1

JP Part #: F03

1 OEM Make: Ford LN LH Breather

3 OEM #: D7HZ-16000B

4 OEM #: Fits 1970 to 1987

5 Info: Hood length approx 37"

6 Info: Square breather on left side, round headlight only

7 Info: Four bolt hinge pattern.adjustable mounts

8 Info: Shipping Wt Crated = 240 lbs

9 Info: ? This hood fits L-model trucks (usually Detroit power)

10 Info: ? This hood takes fender extensions which are mounted on cab

11 Info: ? Drilled for aluminum tube grill

12 Info: ? No metal hinge reinforcements needed

14 Info: E-coated steel innerstructure & sliding hinge mounts

15 Info: Includes adjustor clips & bearings for headlight mounting

16 Info: Undercoating added to supress starburst

17 Info: Extra reinforcement added to hinge area

18 Info: Redesigned rear brace for extra reinforcement

19 Info: Includes wire harness retainers

20 Info: Inner fender mounting holes predrilled

24 Info/# of pics: 1

JP Part #: F08

1 OEM Make: Ford LTS Old Style

3 OEM #: D7HZ-16000F

4 OEM #: Fits 1970 to 1987 - Set Back Front Axle

5 Info: Hood length approx 50"

6 Info: Right hand breather

7 Info: Protruding turn signal mounts

8 Info: Four bolt hinge pattern (adjustable mounts)

9 Info: Shipping Wt Crated = 250 lbs

10 Info: ? When ordering make sure customers hood has not been updated!

11 Info: It should have 4 bolt hinge assembly

12 Info: ? Old style LTS has protruding turn signal mount

13 Info: ? No metal hinge reinforcements needed

15 Info: E-coated steel innerstructure & sliding hinge mounts

16 Info: Includes adjuster clips & bearings for headlight mounting

17 Info: Undercoating added to suppress starburst

18 Info: Extra reinforcement added to hinge area

19 Info: Includes wire harness retainers

20 Info: Drilled for aluminum tube grill

21 Info: Inner fender mounting holes predrilled

24 Info/# of pics: 1

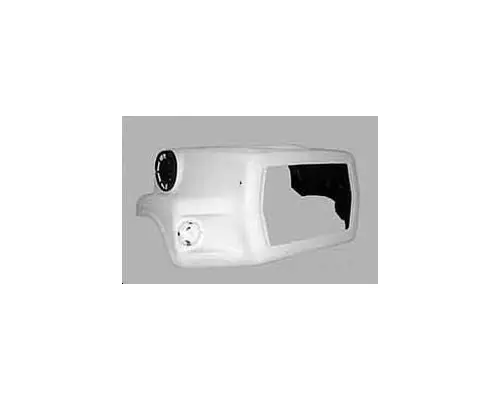

JP Part #: F09

1 OEM Make: Ford LTS New Style

3 OEM #: F4HZ-16000A, E8HZ-16000B

4 OEM #: Fits 1988 to 1997 - Set Back Front Axle

5 Info: Hood length approx 50"

6 Info: Right hand breather

7 Info: Flush turn signal mounts

8 Info: Three bolt hinge pattern (adjustable mounts)

9 Info: Shipping Wt Crated = 255 lbs

10 Info: ? When ordering make sure customers hood has not been updated

11 Info: ? JP-F15 LTA will also fit this model with headlight & wire harness revisions

12 Info: ? Flush turn signals mounts

13 Info: ? Drilled for aluminum tubr grill

14 Info: ? No metal hinge reinforcements needed

16 Info: E coated steel innerstructure & sliding hinge mounts

17 Info: Includes adjuster clips & bearings for headlight mounting

18 Info: Undercoating added to suppress starburst

19 Info: Extra reinforcement added to hinge area

20 Info: Includes wire harness retainers

21 Info: Inner fender mounting holes predrilled

24 Info/# of pics: 1

JP Part #: K06-S

1 OEM Make: Kenworth 88 W-900-B

3 OEM #: K146-1097

5 Info: Fits 1988 to Present

6 Info: Hood length 61 1/4"

7 Info: Has beveled headlamp area

8 Info: Breather cut out approx 13" deep

9 Info: Shipping Wt Crated = 280 lbs

10 Info: ?Sides need to be cut according to what breather assembly is on truck

11 Info: ?Will retrofit 87 to 83 W900B

12 Info: ?Difference between K06 and K06S is depth of intake cut out

13 Info: K06-S is deeper

15 Info: Same As JP-K06 except the rear brace is moved forward

16 Info: 2" to allow for large 16" dual breathers

17 Info: Coremat added to suppress starburst

18 Info: Comes with cable catches, insulation stays

19 Info: Reinforced hinge assemblies are predrilled

20 Info: Comes with headlights cut out

24 Info/# of pics: 1

JP Part #: FL14

1 OEM Make: Freightliner Century C120 BBC

3 OEM #: A17-15092-002

5 Info: Fits FL Century C120 BBC New Style Inboard Hinge

6 Info: Hood length 56"

8 Info: Shipping Wt. Crated - 280 lbs

10 Info: 1 piece design replaces 3-piece OE hood

11 Info: Fits 120 BBC, not 112 BBC

12 Info: Will only accept new style grill OE# A17-15356-000

13 Info: Will only accept new style headlights and bezel

14 Info: Only Century model with oval cutout in rear of headlight bucket

15 Info: OW hood lower grill opening not solid across. Our hood will be solid across

17 Info: Cofab reinforcement used in high stress areas

18 Info: Elastomeric urethane adhesive used in assembly of innerstructure

19 Info: Hinge cross bar included ready for mounting

24 Info/# of pics: 1

JP Part #: M07WC

1 OEM Make: Mack - Western Contractor

3 OEM #: 1QM5781

5 Info: Hood length approx 55 in

6 Info: Has cut out area for right hand breather

7 Info: Alert this hood is 2 inches shorter than regular RD model

8 Info: Shipping Wt Crated = 290 lbs

9 Info: ?Do not confuse with regular RD model. This hood is approx 2 inches

10 Info: shorter and has a left hand cowl edge that is almost flush

11 Info: with the fender

13 Info: Coremat added to suppress starburts

14 Info: Cofab in high stress areas

15 Info: Heavy duty cross bar

16 Info: Comes with headlamp buckets

17 Info: Comes with stainless steel mounting hardware

24 Info/# of pics: 1

JP Part #: V02

1 OEM Make: Volvo (Medium) W.C.M.

3 OEM #: 67001-3268

5 Info: Fit 1985 to 1991

6 Info: Hood length approx 51 1/2"

7 Info: Fits medium length conventionals & may be listed

8 Info: as W.C.M. or W.I.M. - Known as Victor Model

9 Info: Kevlar reinforced cowling edge

10 Info: Shipping Wt Crated = 225 lbs

12 Info: Undercoating added to suppress starburst

13 Info: Cofab placed in high stress areas

14 Info: Kevlar reinforced cowling

15 Info: Inner fender mounting holes predrilled

16 Info: Rd & Sq Headlight applications scribed in hood

24 Info/# of pics: 1

JP Part #: FL02

1 OEM Make: Freightliner S.B.A. FLC 120

3 OEM #: A17-103140

5 Info: FLC 12064 ST

6 Info: Conventional Freightliner with set back axles

7 Info: Hood length 59 1/4"

8 Info: Shipping Wt Crated = 295 lbs

9 Info: ? This hood willnot fit set forward axle truck

11 Info: Undercoating added to suppress starburst

12 Info: Cofab inhigh stress areas

13 Info: Extensive steel cross bar included

14 Info: Rear snubber supports included

24 Info/# of pics: 1

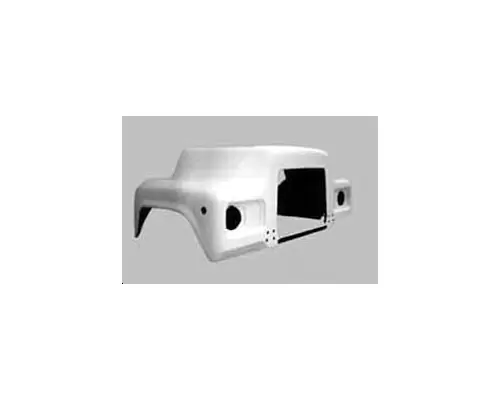

JP Part #: M04

1 OEM Make: Mack U Model (DM)

3 OEM #: 1-QM5559

5 Info: Mack U Model or DM SFA

6 Info: Hood length 40"

7 Info: Easily identified by the extra long right hand fender

8 Info: Shipping Wt Crated = 250 lbs

9 Info: ?This is U of DM set forward axle

11 Info: Undercoating added to suppress starburst

12 Info: Cofab inhigh stress areas

13 Info: Comes with heavy duty cross bar ready for mounting

24 Info/# of pics: 1

JP Part #: G02

1 OEM Make: G.M.C. Brigadier or Chevrolet Bruin

3 OEM #: 20-28182

5 Info: Fits 1978 to 1987

6 Info: Grill opening 25 1/2" inheight

7 Info: Often referred to as "Flat Top"

8 Info: Shipping Wt Crated = 200 lbs

9 Info: ? Be careful - this hood is often confused with T-40 Hi-Visibility.

10 Info: Grill opening (25.5") is the best way to identify

11 Info: ?Old metal hinge brackets are not needed to mount this hood

13 Info: This hood comes with quick fir hinges and is one piece with nose included

24 Info/# of pics: 1

JP Part #: G05

1 OEM Make: G.M. C-60 (School Bus)

3 OEM #: 15-556798

5 Info: Fits 1983 to 1996

6 Info: Hood length 34 1/2"

7 Info: Will fit school bus with straight cowling

8 Info: Shipping Wt Crated = 210 lbs

9 Info: ?Shorter than the conventional C70

10 Info: ? Do not confuse with C70 Truck

12 Info: Comes with inner fenders and metal support brace included

24 Info/# of pics: 1

JP Part #: F55-L

1 OEM Make: Ford F-Series Fender Extersions

3 OEM #: (LH) E4HZ16006-A

5 Info: Fits F-Series tilt hoods and School Buses Hoods 1984-1994

6 Info: Shipping Wt 25 lbs per pair (boxed)

7 Info: ? Designate left hand and right as you sit in the truck

24 Info/# of pics: 1

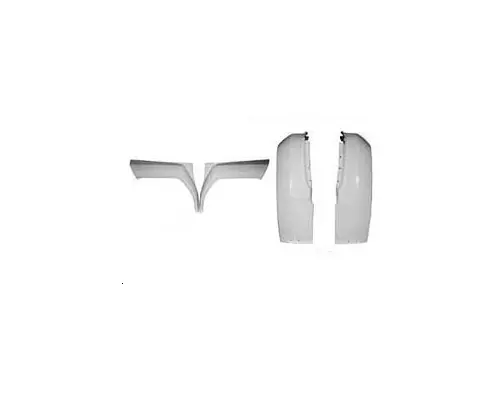

JP Part #: F55-R

1 OEM Make: Ford F-Series Fender Extensions

3 OEM #: (RH)E4HZ16005-A

5 Info: Fits F-Series tilt hoods and School Bus Hoods 1984-1994

6 Info: Shipping Wt 25 lbs per pair (boxed)

7 Info: ?Designate left hand and right hand as you sit in the truck

24 Info/# of pics: 1

OEM #: K14K

Side: Left

OEM #: 1654404-C-3

OEM #: FL-70

OEM #: 9400
